Cat5e+Power Cable LSZH Sheathed Flame Retardant Composite EV Ultra Cable
FTX-EV-CAT5E***(Core)X***(cross section)
FTX-EV-CAT5E***(Core)X***(cross section)SWA
APPlication:
This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power
conductors and an enhanced Cat 5 screened data cable, encapsulated in a double sheathed design for extra
protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other
installations where power and data is required.
DESCRIPTION
CAT5E FTP 4x2x24AWG
Conductor |
Solid copper conductor |
|---|---|
Insulation |
Polyethylene |
Pairs |
Two insulated conductors uniformly twisted together |
Overall Shield |
Aluminum polyester tape+0.5mm Drain wire |
Sheath |
LSZH sheath. nominal outer diameter 6.8 mm |
Sheath Color |
Black |
Power Cable
Conductor |
Plain bare annealed copper conductor, Stranded according to BS EN/IEC 60228 Class 2. |
|---|---|
Insulation |
Thermosetting,XLPE Type GP8 to BS 7655-1.3 |
Insultion Color |
3 Core: Blue, Brown, Yellow/Green |
Voltage |
600/1000V |

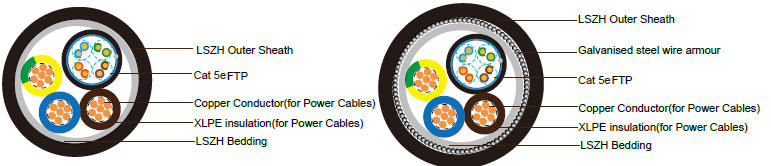

Element Assembly
Bedding |
LSZH compound |
|---|---|
Armour |
Galvanised steel wire armour (where applicable) |
Outer Sheath |
Extruded layer of LSZH polymeric material LTS 4 according to BS 7655-6.1. |
Sheath Color |
Black |

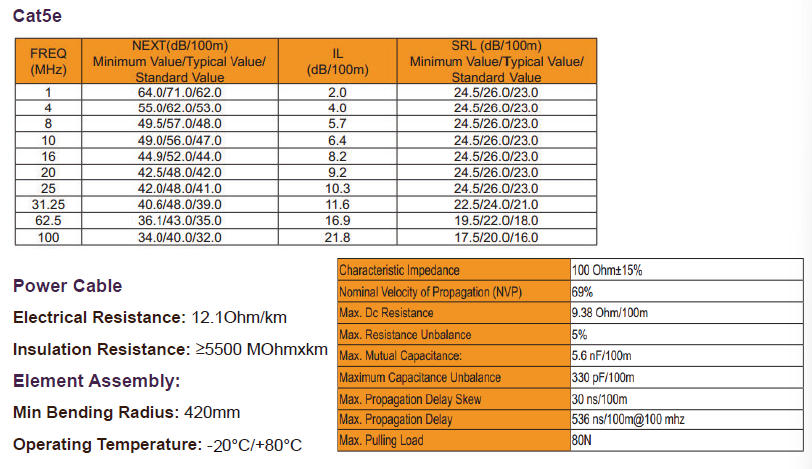

Electrical and Physical Properties @20°C:
Cat5e
fIRe PeRfoRMance
flame Retardance (single vertical wire or cable test) |
Iec 60332-1-2; en 60332-1-2 |
|---|---|
Reduced fire Propagation (Vertically-mounted bundled wires & cables test) |
Iec 60332-3-24; en 60332-3-24 |
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation: IEC 60332-1&IEC60332-3-24
Dimensions:
No. of Cores |
Class of Conductor |
Nominal Diameter Over |
Nominal Armour Diameter |
Nominal Overall Diamater |
Nominal Weight |
Maximum |
|---|---|---|---|---|---|---|
No. ×mm² |
- |
mm |
mm |
mm |
kg/km |
A |
Unarmoured |
||||||
3×6+cat 5e FTP |
2 |
13.6 |
N/A |
16.0 |
410 |
52 |
3×10+cat 5e FTP |
2 |
15.0 |
N/A |
17.6 |
492 |
71 |
5×6+cat 5e FTP |
2 |
15.5 |
N/A |
18.0 |
500 |
52 |
5×10+cat 5e FTP |
2 |
18.4 |
N/A |
19.8 |
710 |
71 |
Armoured |
||||||
3×6+cat 5e FTP |
2 |
13.6 |
1.25 |
18.6 |
700 |
52 |
3×10+cat 5e FTP |
2 |
15.0 |
1.25 |
20.2 |
835 |
71 |
5×6+cat 5e FTP |
2 |
15.5 |
1.25 |
20.5 |
836 |
52 |
5×10+cat 5e FTP |
2 |
18.4 |
1.25 |
23.5 |
1085 |
71 |
Colour Code:
Insulation Colour:
3 Core: Blue, Brown, Yellow/Green
5 Core: Blue, Brown, Black, Grey,Yellow/Green
Sheath Colour: Black
